Detail
VIRA Reflex Level Gauges are designed for safe, accurate and dependable visual monitoring of liquid level in steam boilers and pressurised process equipment. The reflex glass principle provides a clear contrast between water and steam, allowing operators to observe boiler-water level directly during operation.
Clear and Reliable Level Indication

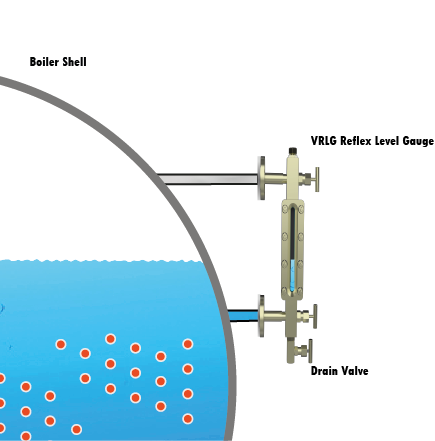

When liquid is present behind the reflex glass, it absorbs light and appears dark; steam reflects light and appears bright. This optical contrast makes the water-steam interface easy to identify and supports reliable local level monitoring in boiler applications.
High-Quality Borosilicate Reflex Glass
High-quality borosilicate reflex glasses provide excellent resistance to thermal stress and demanding boiler operating conditions. The durable glass assembly helps maintain clear visibility for routine operator checks.
Secure Sealing and Corrosion Resistance
Graphite gaskets provide dependable sealing performance at elevated temperature and pressure. The zinc-plated surface finish improves corrosion resistance and supports long service life in industrial boiler-room environments.
Purpose-Designed Valve Arrangement
The specially designed valve arrangement enables practical isolation and easy opening and closing during operation and maintenance. This design supports safe handling and convenient servicing of the level gauge assembly.
PN 40 Pressure Class and 250°C Temperature Rating
VIRA Reflex Level Gauges are designed for PN 40 pressure class applications and operating temperatures up to 250°C. Connection type, centre distance, valve arrangement and material selection can be configured according to boiler design and project requirements.
| Body Material | Carbon Steel |
| Valve Material | Stainless Steel |
| Connection Size | DN 20, DN 25 |
| Maximum Operating Pressure | 40 bar |
| Maximum Operating Temperature | 250 °C |
